Small Pixel P2.5 HD Indoor Led Display Advertising Waterproof LED Screen Regular Steel Or Aluminum Cabinet
Advertising Led Screen Features
- We provide a frame structure that can be mounted on the wall. - The cabinet can be fixed to the frame with magnets, which is very convenient to install. - The modules, power supply, and card can be taken out from the front of the screen, which is very convenient for maintenance. - The die-cast cabinet has excellent flatness and light weight, about 8kg/cabinet, and the thickness of the whole screen is only 130mm when it is installed on the wall.
Advertising Led Screen Specifications
| Item | P2.5 |
| Pixel pitch | 2.5 mm |
| Pixel density(dots/sqm) | 160000/sqm |
| LED encapsulation | SMD2121 |
| Driving method | 1/30 |
| Module size(mm) | 240*120 |
| Resolution of module | 96*48 |
| Cabinet size(mm) | 480*480 |
| Max. consumption(w/sqm) | 1300 |
| Ave.consumption(w/sqm) | 650 |
| Brightness | >1500cd/ sqm |
| Refresh rate | >600HZ |
| Color temperature | 6500K |
| View angle(H/V) | 160°/140° |
| Grey scale | 16bit |
| Brightness adjustment | 256 grade/ Manually/ Automatically |
| Working/ storage tempereture | -20℃~50℃/ -30℃~60℃ |
| Working/ storage humidity | 10%~90% RH |
| Working voltage | AC220/110V 50Hz |
| Protect degree | IP43 |
| MTBF | >5000h |
| Life span | 100000h |
| Input Signal | AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP |
| Operation system | Windows 7/XP |
| Control distance | cat-5 data cable:<100m, optical fiber<15km |

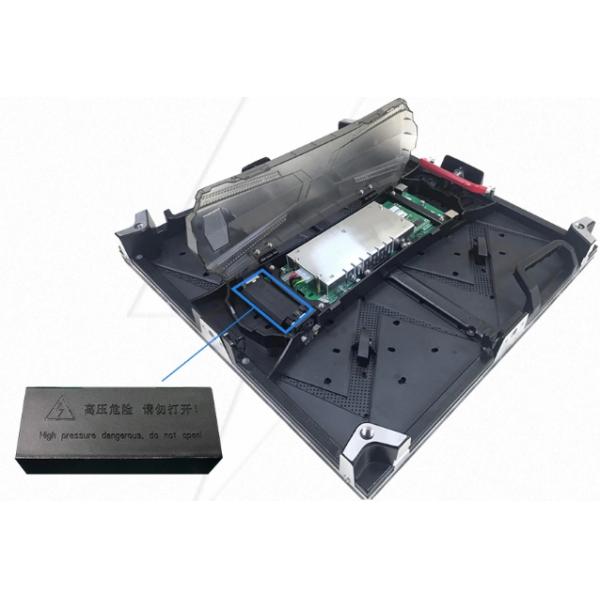

Advertising Led Screen Detailed Pictures
Our service and warranty
1.We guarantee all our screens, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution
to solve the problem.
5.We also could solve problems for you until it recovers well by remote control.
FAQ
Q1. How could I buy the products I need if there is no price in the website?
You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2. How long could I get reply of my inquiry?
You will get a reply within 24 hours.
Q3. What kind of warranty do you offer?
all product here we offer 3 year at least warranty.
Q4. How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5. What kind of payment methods do you have As a manufacturer?
We take T/T and Cash as payment terms
Q6. How long will it take to deliver goods?
We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.
Q7. What kind of packaging you offer?
During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
