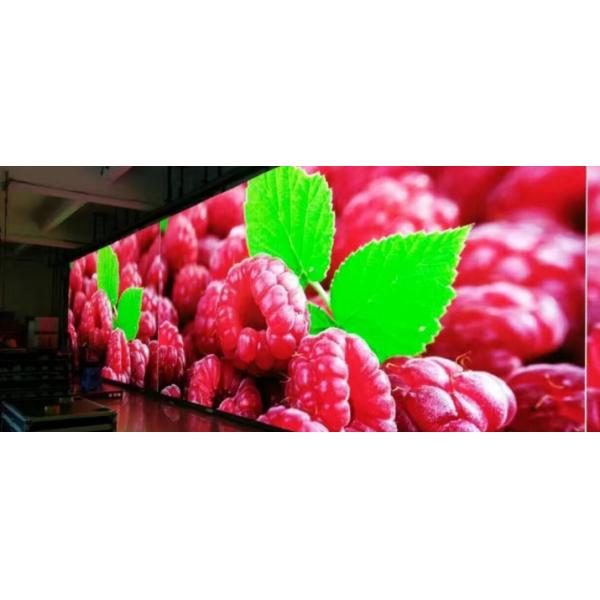

P4.81 aluminum SMD LED Screen outdoor Brightness 6500 Protection Level IP64
| No. | specs | outdoor full color PH4.81 |
| 1 | Pixel structure | SMD, 2727 |
| 2 | Pixel pitch | 4.81mm |
| 3 | Pixel density | 43000dots/Sq. m. |
| 4 | Luminance | ≥6000cd/Sq. m. |
| 5 | Module dimension | 250mm(W) * 250mm(H) |
| 6 | Module resolution | 52 pixel(W) *52pixelmm(H) |
| 7 | Module weight | 400g |
| 8 | Cabinet dimension | 500 * 500mm or other |
| 9 | Cabinet area | 0.25 sq. meter or other |
| 10 | Screen weight | 40~60kg/m2 |
| 11 | Optimal visual distance | > 5m |
| 12 | Visual angel | 140 degree (H/V) |
| 13 | Max power consumption | 1600w /Sq. m. |
| 14 | Average power consumption | 800w /Sq. m. |
| 15 | Brightness adjustment | Adjust according to the enviroment |
| brightness software (0%-100%adjustable) |
| 16 | Drive mode | 1/13 dynamic scan, constant current |
| 17 | Input voltage | AC 110~220 volts |
| 18 | Operation temperature | -10° C~ +50° C |
| 19 | Operation humidity | 10%~90% |
| 20 | Input signal | DVI, MPG, AVI, WMV, RM etc. |
| 21 | Control system | DVI card + master control card + receiver card |
| 22 | lifetime (50% brightness) | >100, 000 hrs |
| 23 | Malfunction dot rate | 1/10000 |
| 24 | Cabinet material | Epoxy paint coated Cold rolled steel iron/Aluminum |
| 25 | Data interconnection | UTP Cat 5/Optical Fiber |
| 26 | Application: | Rental installation available |
1.the easy install steel cabinet and outdoor waterproof cabinet main are used for led advertising led display screen,such as steet ,shopping mall ,park, outdoor building,landmarks airport,station etc
2.the football screen cabinet is used in stadium to live show ,video play,slow motion playback,specific lens display ,sports score information presentation .
3.rental cabinet can easy to install and remove.also easy to transport.now they are used in stage show ,concert ,theater ,party and other entertainment event as background.
Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Our Services
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
Certifications:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
