P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration

  • 1
  • 2
  • 3

Brand Name : SCXK

Model Number : SMD P4

Certification : CE/ROHS/FCC/ISO/UL

Place of Origin : CHINA

MOQ : 3pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 sqm month

Delivery Time : 7-12 working days

Packaging Details : flight case, wooden case, carton, it is up to you.

Resolution/mm : 4

Pixel configuration : RGB 3 in 1

Pixel density/pixels/m² : 62500/m²

Module size/mm : 256*128MM

View distance : ≥2m

Warranty : 4 years

Refresh frequency : >4200Hz

waterproof : IP65

Contact Now

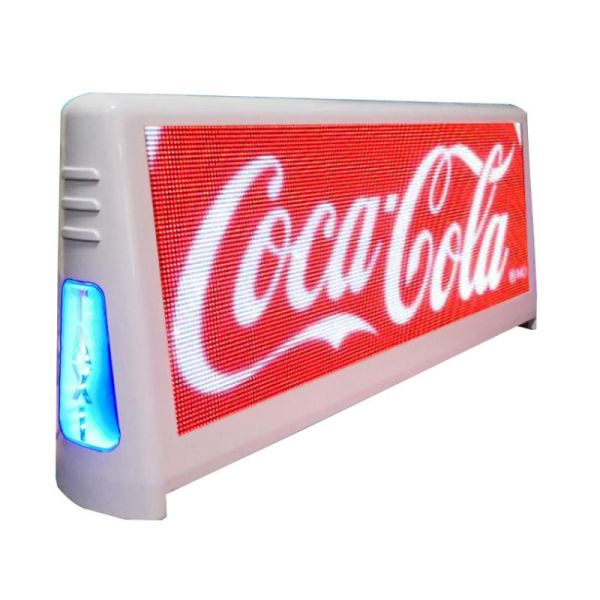

P4 waterproof HD IP65 video car LED signage display, taxi car roof LED display, light and low power consumption

♦P4 Taxi LED Display

1. High reliability. 24h/7day advertising all the time and all weather conditions.

2. Low power consumption.9-36V DC input.Vehicle battery is enough to make the taxi top LED sign work.
3. High brightness. Using P5 SMD LED display module, luminance reach 5000nit plus. Our taxi top LED sign can be seen very clearly in the sunlight.

Perfect Brightness and Chromaticity Calibration


Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.

Get Every Detail in Picture

We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.

♦ Product specification

Lamp size
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 64x32
Module size/mm 256*128MM
View distance ≥3m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Warranty 5 years
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Taxi Top LED Display

P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration
