HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel with 160000dots/sqm

Shenzhen Shichuangxinke Electronics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel with 160000dots/sqm

Brand Name : SCXK
Model Number : P2.5
Certification : CE/ROHS/FCC/SGS
Place of Origin : China
MOQ : negotiation
Price : negotiation
Payment Terms : T/T or western Union
Supply Ability : 5,000/ Sq m per month
Delivery Time : 10 working days after received your payment
Packaging Details : Packed in wooden case and flight case for outer packing
Product Name : indoor p2.5 led display
Module Size(W * H) : 160mm*160mm
Standard : CE/ROHS/FCC/ISO2001
Tube Chip Color : full color
Pixel Pitch : 2.5mm
Module Qty : 1pcs
type : free standing
Resolution(W*H) : 64dots*64dots
Contact Now

HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel with 160000dots/sqm

We are the professional manufacturer of outdoor and indoor led display. With more than 11 years experience, located in Shenzhen city which is enjoyed the name of chinese silicon valley.over the past years,our led products and service got many good comments for our clients


Methods for Quality Assurance


a. Aging

1. 100% fully test

  1. Condition: 72 hours with 1024 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range


Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,Automatic Glue- pouring Machine, Solder Paste Printing Machine,Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


♦ Product specification


Specifictions
LED LampsTypeSMD2121(High Brightness LEDs)
LED StandardReal Pixel(1R1G1B)
Red Wavelength625-630nm
Green Wavelength515-530nm
Blue Wavelength465-475nm
LED ModulePixel Pitch2.5mm
Module Size160mx160m
Module Resolution64*64dots
LED CabinetCabinet Size640mmX640mm
Cabinet Resolution256pixels *256pixels
Cabinets MaterialIron steel cabinet
LED DisplayPixel Density160000pixels/sq.m
Drive ICMBI5024
Power SupplySeries connection
Brightness>2500cd/sqm
Display Color16.7million
Viewing Angle110°(Horizontal),50°(Vertical)
Best Viewing Distance1.5m~160m
Max Power Consumption600 w/sq.m
Average Power Consumption300 w/sq.m
Weight35Kgs/sq.m
Refresh Rate3000hz
Input VoltageAC220V/50H or AC110V/60H
Output VoltageDC5V,40A
Grey Scale Levels1024
Display ColorsR(1024) x G(1024) x B(1024)
MTBF10,000 hours
Life-span100,000 hours
Protection LevelIP45
Failure percentage of ledsless than 0.0003
Working Temperature-25℃~65℃
Drive Mode1/32 scaning
Working Humidity10%~99%
Control SystemControl methodSynchronization & Asynchronization
Control SystemLINSN Control System (sender,receiver,HUB with 75 interface,software)
SoftwareLED Studio (LINSN)
Input SignalMPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
PC Operating systemMicrosoft Windows 7, 98, 2000, XP and Vista

Product NameHD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel with 160000dots/sqm
ServiceYour inquiry will be reply within 12 hours.
BrandSCX
MaterialStainless, aluminum ,steel, epoxide resin,PE
Item

Indoor P2.5,P3,P4,P5,P6,P7.62

OutdoorP6,P8,P10,P12,P16,P20

FeatureHigh brightness, good resolution, working stable , easy installation.
GradeIP43-IP65
Driving modeconstant driving current
StockRegular items of led display have stocks.
Color temperature6500-9500K
Packing MethodFlight case &Plywood case or Customized Packing
Power supply requestAC85-264V(50HZ-60HZ)
Payment TermT/T, Western Union
Delivery TimeWithin 7-30 days according to your required size & quantity.

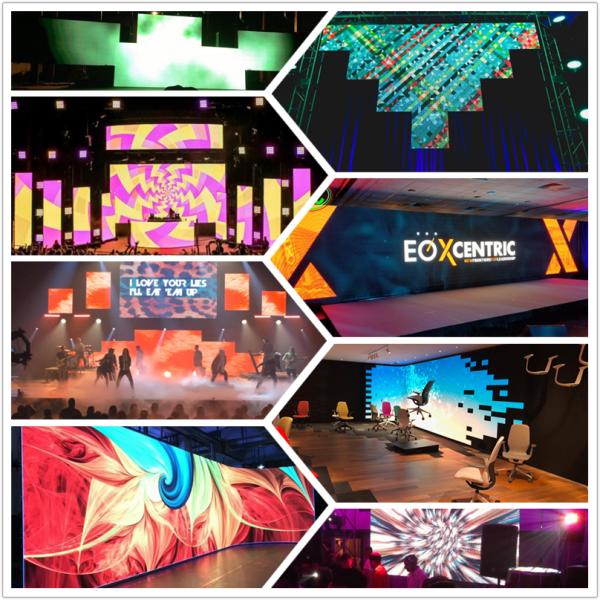

Using RangeShopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi, and etc.



Payment and delivery
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.

♦ Why choose us:


Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.


Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.


Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.


Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.


♦ Frequently Asked Questions


What kind of payment terms you can accept ?

We can accept T/T and Western Union.


What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.


What is your delivery time ?

Within 7-35 days according to your area and quantity.


Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.


Thank you very much for viewing our website, and wish you a nice day!
