Brand Name : SCXK
Model Number : P10
Certification : CE/ROHS/FCC/ISO/UL
Place of Origin : China
MOQ : 1sqm
Price : negotiation
Payment Terms : T/T, T/T
Delivery Time : 7-10 working days after receive your payment
Packaging Details : flight case, wooden case, carton, it is up to you.
Pixel Density : 10000
Brightness : 6000
Control System : LSN
LED Shape & Size : 3mm smd3535
Module Size : 320*160
Driver mode : 1/4
Operation Power : 220V 60HZ
Rgb Full Color P10 Outdoor Led Billboards Smd3535 Density 10000 Energy saving
1,High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2,Having good lightening accordance and no mosaic.
3, Using virtual pixels, better viewing effect for both text & graphic and video.
4, Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5,Any led in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6,Good heat emission capability
7,Environment-friendly.
LED Screen Body Parameters | ||
1 | Pixel Pitch | 10mm |
2 | Drive Mode | 1/4S |
3 | Drive IC | |
4 | Module Resolution | 16×32dots |
5 | Module dot Quantity | 512 dots |
6 | Module Size(LxH) | 160×320mm |
7 | Standard Cabinet Size(LxHxT) | 960×960×140mm |
8 | Simple Cabinet Size | 960×960×80mm |
9 | Cabinet Resolution | 96×96dots |
10 | Pixel Density | 10000dots/m2 |
11 | Cabinet Material | Iron |
12 | Brightness | 5500~6500cd/m2 |
13 | Viewing Angle | H 110°, V 70° |
14 | Minimum Viewing Distance | ≥10M |
15 | Gray Level | 16bit |
16 | Color Quantity | 281 Trillion |
17 | Refresh Rate | ≥1920Hz |
18 | Frame Rate | 60fps |
19 | Input Voltage | AC220V/50Hz or AC110V/60Hz |
20 | Power Consumption(Max/Avg) | 650/260 W/m2 |
21 | Screen Body | Standard Iron 65 kg/m2 |
22 | MTBF | >10,000 H |
23 | Life Span | ≥100,000 H |
24 | IP Grade | IP65 |
25 | Temperature | -20℃~60℃ |
26 | Humidity | 10%~90% |
27 | Control System | Normal |
28 | Interface Definition | HUB75 |
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
FAQ:
1, How can you place the order to us?
We are factory of Outdoor and Indoor LED Display,and has nearly 6 years' Professional experience in this.If you are interested in our products,we will try our best to cooperate with you.Firstly,you can tell us the module size,then our engineer will analysis and do several kinds of projects as per your request for your selection,every project has its own advantage and disadvantage,all the details included price is for your reference,then you can make decision to select which project is the best fit for your situation.Once you confirmed the order,then you will pay us the deposit of 30%,both of you and us stamp and sign the contract,then we will produce the goods for you,make sure to offer you good quality,and delivery the goods within the deadline,Service first,trust us,trust the world.
2. If you want cheaper price,what will we do?
As we are factory,so the price we offer you is reasonable,and we must make sure good quality,you can compare the price to other suppliers if in all the same product,but,if your quantity is large indeed,we can also consider very less profit for your long time cooperation with us,and make co-win.Profit is not our last goal,our goal is doing better quality and service for more people,let more persons enjoy the different feeling,more entertainment and the most important news,using our LED Display,you will get relax and happy mood,we can talk about everything.Communcation is not the problem forever.
3. How can you trust the quality of our products?
For building the good reputation,just say only is not suitable,we must do it to prove ourself,every course is strict from the beginning we buy material,our engineer inspect the quality of material,even the smallest component,what's more,they will guide workers to produce,once they found the bad point,the products will be done poorly done work over again in the shortest time,they will not stop to test every point until all the point is good ,because they know details decide whether succeed or not especially in nowadays,welcome to check us.
4. Can you visit our factory in China?
Usually except our staff,other persons are not allowed to visit the factory,as you know it is not good for workers to produce intently.But,of course,our factory is open to our customers,very welcome to visit us,and the person who is responsible will guide you to scan the workshop every step,you will know the rough producing situation,then you will be trustfull to us.Business is long time cooperation.Trust is the most important between each other. I think we can not only do business together,but also can be good friends.The future is belonging to both of you and us.
5. What is our culture:
Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.
CONTACS:
OLEG
skupy: jonniloc
whatsapp: +86-13244742283
email:oleg@scxled.cn

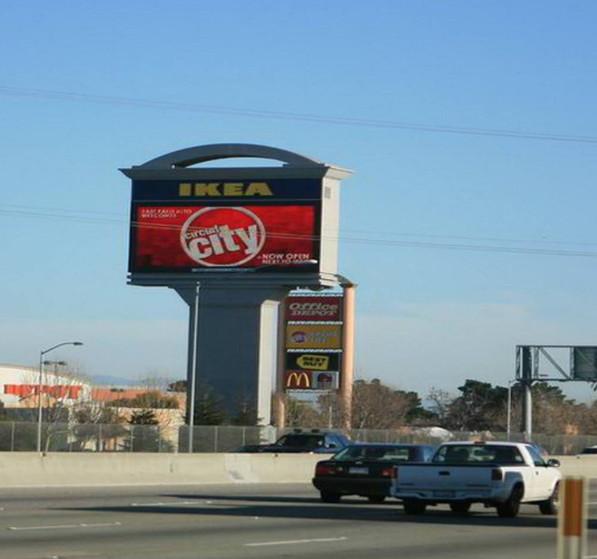

Rgb Full Color P10 Outdoor Led Billboards Smd3535 Density 10000 Energy saving Images |
